3 AXIS 2000 * 4000 mm water jet cutting machine with 60000 psi high pressure intensifier pump water jet cutter

Ask Lasest Price
Brand Name :	WAMIT
Model Number :	WMT2040-AL
Certification :	CE,ISO
Price :	USD 45000-60000
Payment Terms :	L/C, T/T
Supply Ability :	200 SETS/YEAR
Delivery Time :	30 DAYS

Add to Cart

Product Details
Company Profile

3 AXIS 2000 * 4000 mm water jet cutting machine with 60000 psi high pressure intensifier pump water jet cutter

3 AXIS 2000 * 4000 mm water jet cutting machine with 60000psi high pressure intensifier pump water jet cutter

A full set of abrasive waterjet cutting machine includes work table, pump,CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Abrasive removal system,etc.

Equipment framework adopts supper heavy support system. The heavy-duty support of the equipment is rigid enough to ensure the stability under long-span and high-speed operation. With a multi-point fixing method in the length direction of the frame, there is no any deformation displacement during operation, which ensure the cutting accuracy.

30m/min machine moving speed and 15kw direct drive pump , will save your 70% glass cutting cost

Water jet cutter Advantage:

1. 37KW SIEMENS motor
2. All electric components are Schneider brand
3. Can do special size and special design according to customer’s demand
4. Free abrasive sand feeding system
5. We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6. Imported intensifier pump
7. Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8. Soft cover for linear guider or gear and rack, can effectively prevent dust
9. Install an automatic oil tank for cutting table , no need maintenance of linear guider
10. Legitimate WINDOWS 7 system and install the Chinese newest water jet cutting system

11. HIWIN linear guider and ball screw
12. Variable servo pump can reduce the electricity cost
13. We have agents in India, America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam, and so on.
14. We can make machine moving speed to 10-50m/min which will improve your cutting efficiency
15. We are finding agent all over the world

Water jet cutter specification:

Name	Item	Parameter
Intensifier Pump	Model	WMT3742Z
	motor	SIEMENS
	Method of Direction Regulation	Electronic direction regulation
	Pressure Range	50-420MPA, continuous pressure is 330-380Mpa
	Maximum Flow of Hydraulic Pump	90 L/min
	Maximum Discharge Capacity	3.7 L/min
	Maximum Diameter of Gem Nozzle	0.33 mm
	Power of Master Motor	37 KW
	Power Source	380V/50HZ, also work at 220V/60HZ, 415V
Cutting Table	X axis Characteristic	use strong 10MM steel, 2000MM cutting range. The cutting table width is 2200mm
	Y axis Characteristic	Cast iron is used as the foundation base , 4000MM cutting range . The cutting table length is 4200mm.
	Z axis Characteristic	Z axis doublelinear guide and four sliding block , 180MM, CAN DO 200MM
	Control Accuracy	±0.01mm, cutting accuracy is ±0.1mm, reposition accuracy: ±0.02mm, max travelling speed:6000mm/min, we have new technology that can make the travelling speed 20-30m/min.
	linear guider	TAIWAN HIWIN BRAND
	Table Ctructure	Separated body, can be delivered by one 20'FCL container
	Driving Way	Servo drive system
	CNC system	Ncstudio ,Fagor
	Servo Motor	SIEMENS motor
	Cutting Head	Casting structure and Concrete structure
	Sealing Way	soft dustproof cloth on X,Y,Z axis,the sealing result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence.
	Loading Weight Water Tank	Wall thickness is 6mm,using fluorocarbon coating, Can antirust at least 5 years.
CNC Controller	Control Method	CNC
	Display Size	21inch LCD
	Model of Cutting Text	DXF
	Model of Computer	Industrial Control Computer
	Operating System	Windows 7
	PLC	SIEMENS
	Cutting Software Advantage	Auto save and transfer common parameter
	Controller Displace	Can be fit to suitable place at own will
Automitic Abrasive Feeder	Founction	Sand storage and sand delivery
	Operating	No need electrocnic control,sample operation
	Capacity	200 kg for 8 -10hours
	Pressure	0.3-0.6Mpa compresses gas pressure
	Color	White
Deionization System	Water pressure	0.15Mpa~0.6Mpa
	Water temperature	5°C~50°C
	Environment temperature	5°C~50°C
	Relative humidity	≤95%(25°C)
	Water turbidity	<20FTU
Wireless Handle	Founction	Wireless controlling waterjet
	Display	Real- time display condition of X,Y,Z axis
	Settings	Zero point, on/off valve set, X,Y,Z axis moving
	Technology	Advanced technology

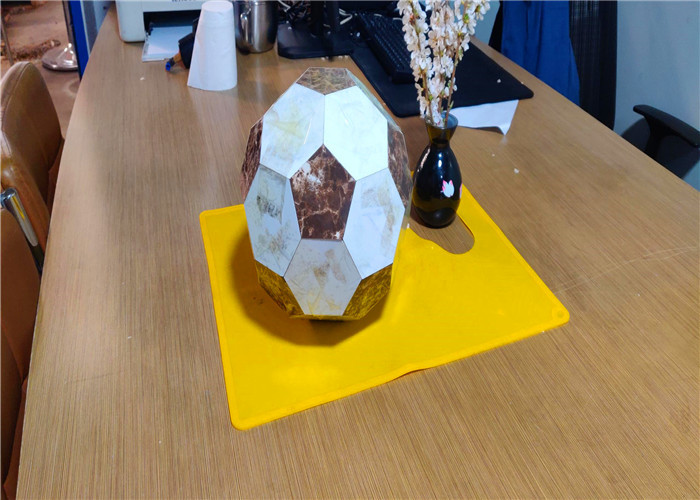

Water jet cutter cutting samples:

3 AXIS 2000 * 4000 mm water jet cutting machine with 60000 psi high pressure intensifier pump water jet cutter

Water jet cutter models :

Models of Bridge type CNC waterjet cutting machine
Model number	X Axis (mm)	Y Axis (mm)	Z Axis (mm)
WMT1010-AL	1000	1000	150-200
WMT1515-AL	1300	1300	150-200
WMT2015-AL	1500	2000	150-200
WMT2515-AL	1500	2500	150-200
WMT2520-AL	2000	2500	150-200
WMT3015-AL	1500	3000	150-200
WMT3020-AL	1800	3000	150-200
WMT4020-AL	1500	4000	150-200
WMT4030-AL	1800	4000	150-200
WMT5020-AL	2000	5000	150-200
WMT6020-AL	2000	6000	150-200
WMT8020-AL	2000	8000	150-200
WMT12020-AL	2000	12000	150-200
WMT5030-AL	3000	5000	150-200
WMT6030-AL	3000	6000	150-200
WMT8030-AL	3000	8000	150-200
WMT12030-AL	3000	12000	150-200

Models of cantilever type CNC waterjet cutting machine
Model number	X Axis (mm)	Y Axis (mm)	Z Axis (mm)
WMT1010-AX	1000	1000	150-200
WMT1515-AX	1300	1300	150-200
WMT2015-AX	1500	2000	150-200
WMT2515-AX	1500	2500	150-200
WMT2520-AX	2000	2500	150-200
WMT3015-AX	1500	3000	150-200
WMT3020-AX	1800	3000	150-200
WMT4015-AX	1500	4000	150-200
WMT4020-AX	1800	4000	150-200
WMT4030-AX	2000	4000	150-200
WMT5020-AX	2000	5000	150-200
WMT6020-AX	2000	6000	150-200
WMT8020-AX	2000	8000	150-200
WMT9020-AX	2000	9000	150-200
WMT10020-AX	2000	10000	150-200

3 AXIS 2000 * 4000 mm water jet cutting machine with 60000 psi high pressure intensifier pump water jet cutter

About pump:

We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.

1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?

Requirements	Waterjet	EDM	Laser	Plasma	Machine tools
Cost and time efficient	Yes	No	Yes	Yes	No
High tolerance, precise cutting	Yes	Yes	Yes	No	No
No burned edges, no HAZ	Yes	No	No	No	Yes
Multi-head cutting	Yes	No	Yes	No	Yes
Steel is over 150mm thickness	Yes	Yes	No	Yes	Yes
No distortion or discoloration	Yes	Yes	No	No	Yes
Nesting yield	Yes	Yes	Yes	No	No
Shiny, mirror finish	Yes	Yes	No	No	Yes
Brittle,soft or hard material	Yes	Yes	Yes	Yes	No
Stainless steel, copper, brass or exotic material	Yes	Yes	No	Yes	No
No toxic fumes, deposits, or carbon buildup	Yes	No	No	No	No
Environmentally friendly	Yes	No	Yes	Yes	No

2. What kind of material does your water jet cutting machine can cut?

There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy

3. What's your cnc water jet cutting machine's max.cutting thickness?

Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.

4. How we supply after-service?

Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.

5. What's your delivery time?

Generally speaking is 30 days. if have stock, 15 days.

6. what is the cutting speed?

Material	Thickness(mm)	Cutting Speed of 420MPa pump(mm/min)
Marble	20 30	410 360
Granite	20 30	380 250
Glass Bridck	12	1100
Glass	5 10 20	1610 725 420
Glue Chipped Glass	10	630
Sponge	50	6500
Foam	50	6500
Wood	10 50	1350 270
Steel	2 4 6 8 10 15 20 60	800 570 520 360 260 150 60 26
Laminates	10	2000
Aluminum	5	970
Copper	5	460
Glass Fibre Reinforced plastic	2	1650

3 AXIS 2000 * 4000 mm water jet cutting machine with 60000 psi high pressure intensifier pump water jet cutter
