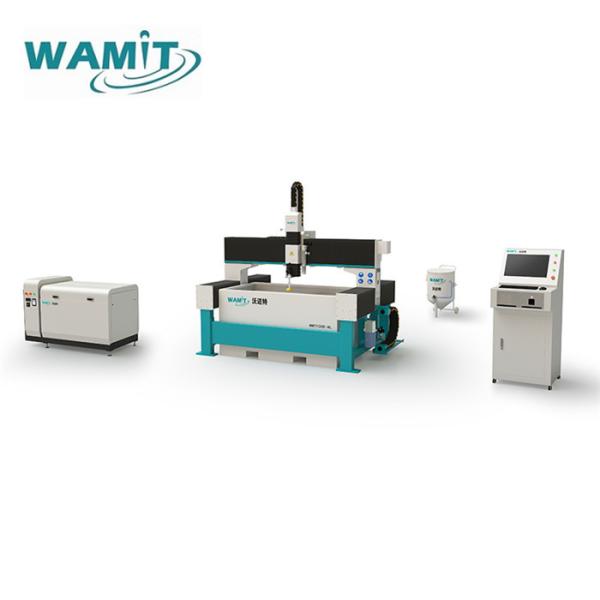

    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter

    1500 * 1500 mm Water jet cutting machine with direct drive pump for granite tile marble cutting water jet cutter


    Water jet cutter quik details:


    1. Pump: 60000 psi direct drive pump


    2. Adopt industrial PC


    3. linear guider:imported from TAIWAN HIWIN


    Main Features:


    1. Gantry type balanced design work table, solid and stable, higher strength


    2. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting


    3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.


    4. Lntegrated automatic lubrication system make the maintenance more automatic and easier.


    5. All electric components are Schneider brand


    6. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life.


    NameItemParameter

    Direct drive Pump


    Model

    WMT SDD 20

    motorSIEMENS
    Method of Direction RegulationElectronic direction regulation
    Pressure Range50-420MPA, continuous pressure is 330-380Mpa

    Maximum Flow of Hydraulic

    Pump

    90 L/min
    Maximum Discharge Capacity3.5 L/min

    Maximum Diameter of Gem

    Nozzle

    0.33 mm
    Power of Master Motor15 KW
    Power Source380V/50HZ, also work at 220V/60HZ, 415V
    Cutting TableX axis Characteristicuse strong 10MM steel, 2500MM cutting range. The cutting table width is 2700mm
    Y axis CharacteristicCast iron is used as the foundation base , 1500MM cutting range . The cutting table length is 1700mm.
    Z axis CharacteristicZ axis double linear guide and four sliding block , 180MM, CAN DO 200MM
    Control Accuracy

    ±0.01mm, cutting accuracy is

    ±0.1mm, reposition accuracy:

    ±0.02mm, max travelling speed:6000mm/min,

    we have new technology that can make the travelling speed 20-30m/min.

    linear guiderTAIWAN HIWIN BRAND
    Table CtructureSeparated body, can be delivered by one 20'FCL container
    Driving WayServo drive system
    CNC systemNcstudio ,Fagor
    Servo MotorSIEMENS motor
    Cutting HeadCasting structure and Concrete structure
    Sealing Way

    soft dustproof cloth on X,Y,Z axis,the sealing

    result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence.

    Loading Weight Water Tank

    Wall thickness is 6mm,using fluorocarbon

    coating, Can antirust at least 5 years.

    CNC ControllerControl MethodCNC
    Display Size21inch LCD
    Model of Cutting TextDXF
    Model of ComputerIndustrial Control Computer
    Operating SystemWindows 7
    PLCSIEMENS
    Cutting Software AdvantageAuto save and transfer common parameter
    Controller DisplaceCan be fit to suitable place at own will

    Automitic Abrasive

    Feeder

    FounctionSand storage and sand delivery
    OperatingNo need electrocnic control,sample operation
    Capacity200 kg for 8 -10hours
    Pressure0.3-0.6Mpa compresses gas pressure
    ColorWhite

    Deionization System

    Water pressure0.15Mpa~0.6Mpa
    Water temperature5°C~50°C
    Environment temperature5°C~50°C
    Relative humidity≤95%(25°C)
    Water turbidity<20FTU
    Wireless HandleFounctionWireless controlling waterjet
    DisplayReal- time display condition of X,Y,Z axis
    SettingsZero point, on/off valve set, X,Y,Z axis moving
    TechnologyAdvanced technology

    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter

    Control Theory of Servo Direct Drive Pump:


    Direct drive pump is a device that directly converts electric energy into hydraulic energy by a crankshaft connecting rod mechanism, and the energy conversion ratio is as high as 97% or more. The power conversion ratio of the conventional asynchronous motor is 80% and that of permanent-magnet servo motor is 97%; therefore, replacing asynchronous motor by permanent-magnet servo motor greatly improves the power consumption of the intensifier, keeping the conversion rate above 90%; while the energy conversion rate of the conventional hydraulic intensifier is only 56% (This conversion rate is only in the state of full work.). In the traditional hydraulic system, the asynchronous motor still keeps turning when the waterjet is not cut (such as the movement of the cutting head, changing the cutting material, etc.), and the oil pump is still in working state. Although the pressure of the oil pump is not high at this time, still there is 30% power loss. Even servo power oil pump is used, the asynchronous motor still has 30% loss if it maintains its own rotation and power magnetic field.


    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter

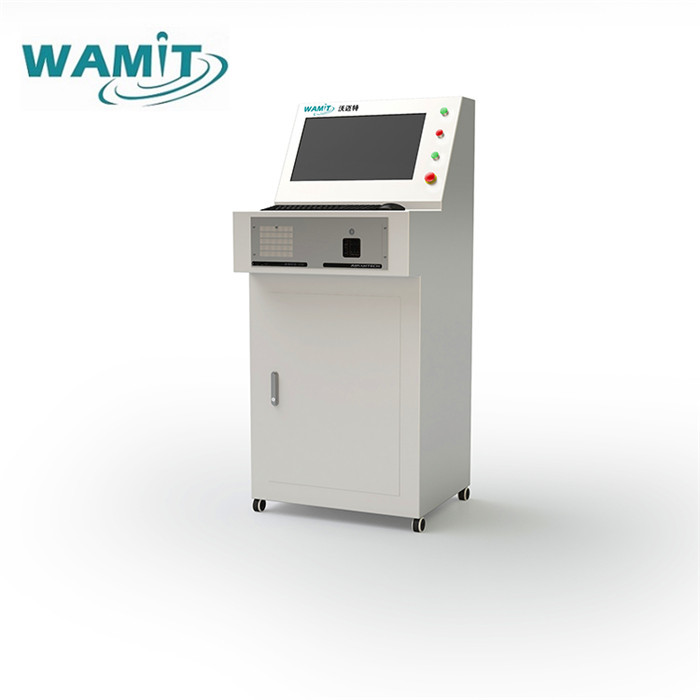

    CNC control system


    CNC control, apply 21 inch LCD
    Adopt specialized NCStudio water jet cutting software, have autosave function for next operation.
    Apply SIEMENS PLC instead of relay, buttons are Schneider


    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter

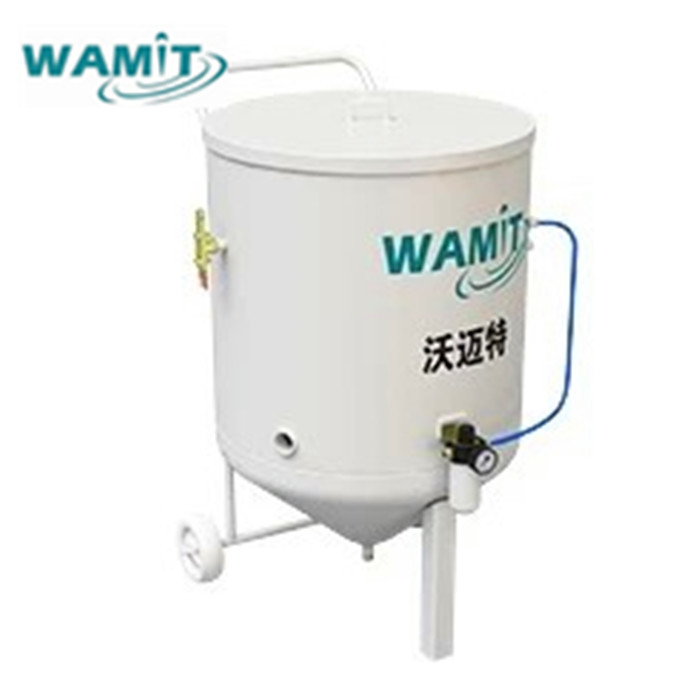

    Abrasive feeding system

    No need electronic control, simple operation, reliable, maintenance-free
    Can supply the cutting sand quantity
    Need less than 0.2Mpa compressed gas pressure


    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter

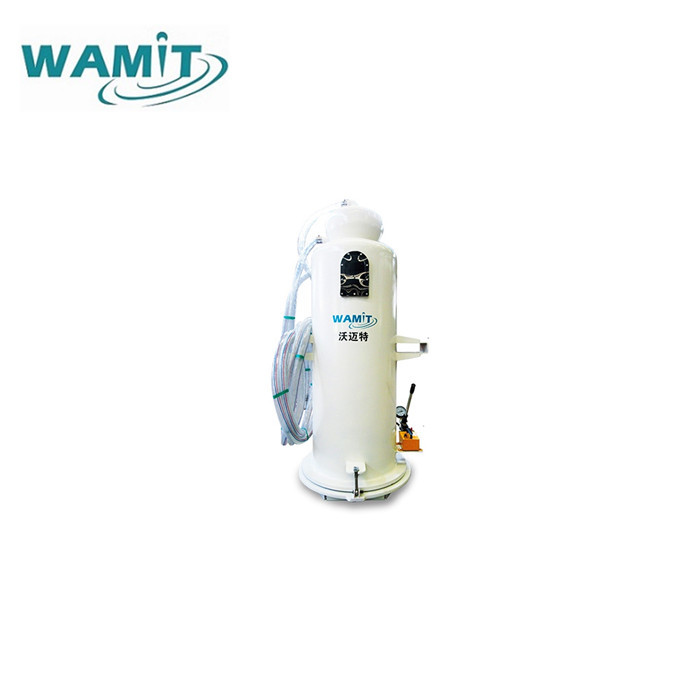

    Desanding system

    Optional equipment.The desanding system provides a solution for the problem of removing waste sand of water jet cutters for users all over the world.


    Water jet cuttier cutting speed:


    MaterialSpecificationSpeed(mm/min)
    Servo direct drive pumpHydraulic intensifier pump
    Carbon steel plate10mm330270
    12mm280220
    14mm240180
    16mm200140
    20mm170110
    22mm14085
    Aluminum plate12mm800600
    30mm200160
    Glass5mm20001600
    8mm18001400
    10mm15001100
    12mm1200900
    14mm1000700
    Ceramic tile12mm20001500
    14mm1400900
    Microcrystal stone16mm1200900
    Marble25mm1000800
    30mm800600

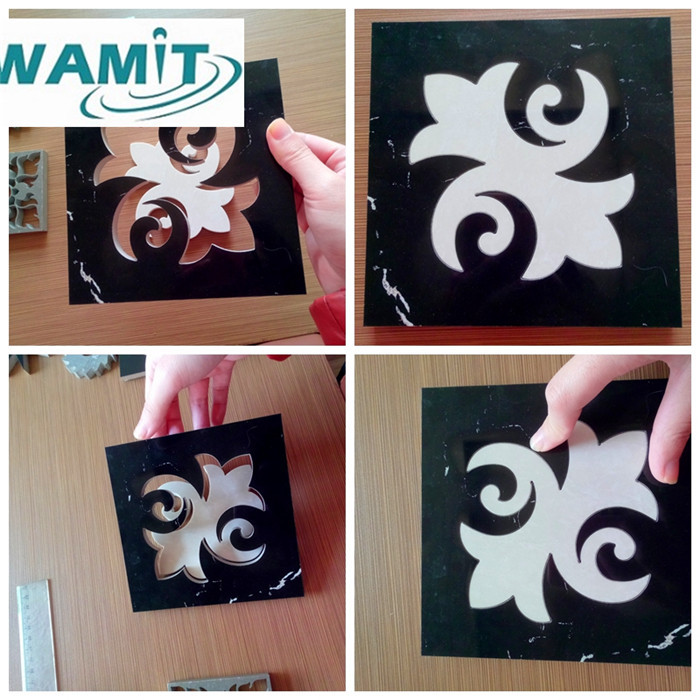

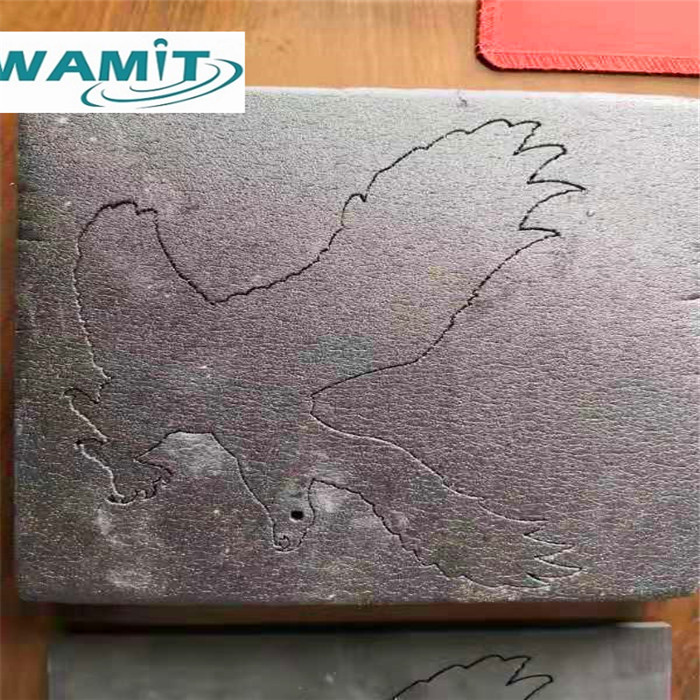

    Water jet cutter cutting samples:


    1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter1500*1500mm Granite Water Jet Cutting Machine / Wamit Water Jet Tile Cutter


    Customer Service:


    We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam. we can arrange engineers go to customer's factory if no agents in their country.
