1500 * 2500 mm cnc metal cutting water jet cutting machine with 420 Mpa high pressure pump water jet cutter

Our water jet cutter specification:

FAQ:

1. What is the accuracy the water jet cutter ?

The cutting accuracy of the water jet cutter is +/-0.1mm. Application of dynamic water cutting machine can improve cutting accuracy and eliminate cutting slope.

2. How much thickness the water jet cutter can cut?

Under normal circumstances, water jet cutter can cut any material with a thickness of 0-50mm (except tempered glass).

3. How to choose the abrasive for water jet cutter?

The most commonly used abrasive for waterjet cutting is garnet sand. The high-quality garnet sand is reddish brown, free of dust and impurities, and has sharp edges and corners.

4. How wide is the slit for waterjet cutting?

The cutting seam of waterjet cutting is about 10% larger than the diameter of the knife tube, generally 0.8mm-1.2mm.

5. What is the pressure of waterjet cutting?

Usually the highest pressure of waterjet cutting equipment is 400MPa (60000psi). If you want the fastest and efficient cutting, it is recommended to use the highest cutting pressure. Although it will increase a small amount of equipment loss, the benefits of relative efficiency are still It is higher than the maintenance cost. Generally speaking, the main factors of sand cutting are labor cost, abrasive cost and depreciation cost.

6. What is the slope of the water jet cutting surface?

Generally speaking, if the dynamic cutting system is not used, there will be a certain slope on the outside of the waterjet cutting, and the general slope will be 3-5 degrees. The size of the slope is related to the thickness of the material and the cutting speed. The smaller the thickness, the slower the cutting speed and the smaller the slope.

7. Can the water used for waterjet cutting be used repeatedly?

The water in the water tank can be reused after being refiltered, but the water consumed during waterjet cutting will increase the cost if the water is filtered and then used.

The features of our water jet cutter:

1.37KW SIEMENS motor
2.All electric components are Schneider brand
3.Can do special size and special design according to customer’s demand
4.Free abrasive sand feeding system
5.We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6.Imported intensifier pump
7.Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8.Soft cover for linear guider or gear and rack, can effectively prevent dust
9.Install an automatic oil tank for cutting table , no need maintenance of linear guider
10.Legitimate WINDOWS 7 system and install the Chinese newest water jet cutting system

Models of Bridge type CNC waterjet cutting machine:

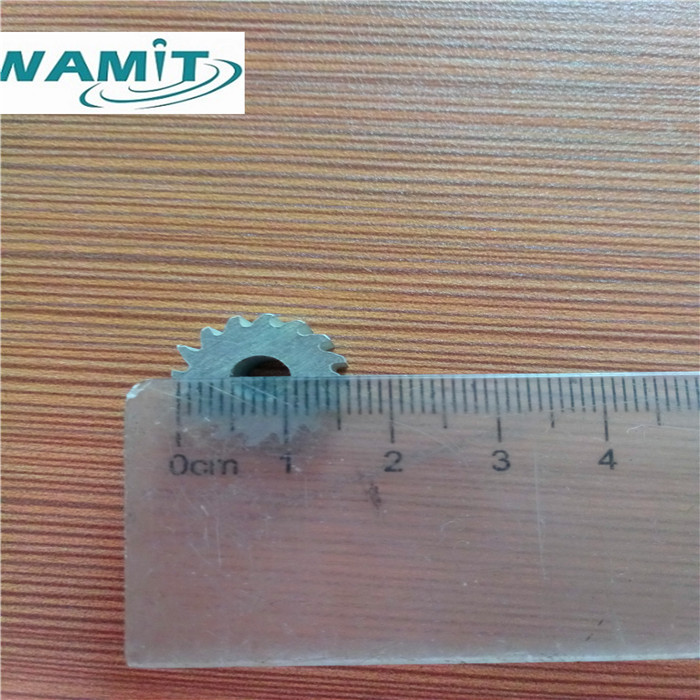

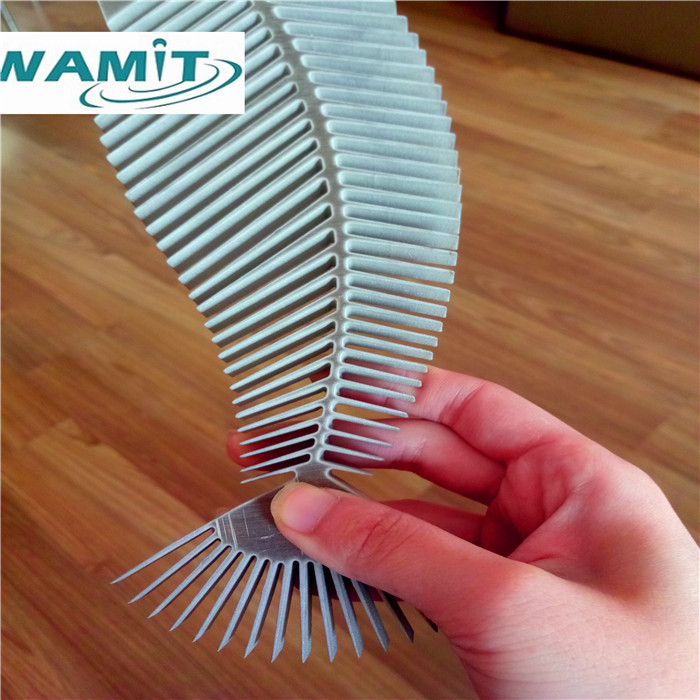

Water jet cutter cutting samples:



Company profile:

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. All machines are with one-year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to30-50m/min so that reduce you 15%-50% cutting cost according to the materials.Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary ,Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.

we have 420Mpa intensifier pump, 600Mpa intensifier pump ,60000psi direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.

We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.

our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.

Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.

We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more!
