5 axis Plastic Material Cutting High Pressure Water
Jet Cutting Machine with 60000psi Pump Pressure
our direct drive pump can save your 60%-70% electricity cost!
Can nearly cut all material:
Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel AlloysStainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood
food
Machine models:
Advantages:
The X/Y axis uses a new labyrinth protection.
Japan River Valley automatic lubrication system.
Internal components adopt the German Schneider brand.
Absolute value motor, no zero detector, with power off memory
function.
International brand AC servo drive power supply and motor.
5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal
Stainless Steel Cutting Machine with Drilling Function
60000psi (420mpa) intensifier pump
1.Type of pressurization is hydraulic. (The water is pressurized by
using the fluid pressure intensification principle).
2.Max. oil discharge is 90 L/min
3.Max. water discharge is 3.8L/min
4.Max. diameter of orifice is 0.33mm
5.Max. operating pressure is 420MPa(60000 psi)
6.Continuous operating pressure is 350-380MPa
7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.
8.Type of shift is electronic
9.Maintenance free accumulator is originally imported from TAIWAN.
10.Intensifier assembly is imported from USA
11.With SIEMENS motor and SIEMENS PLC and the motor is variable
pump so that can reduce using cost.
12.all electric components are Schneider brand.
5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal
Stainless Steel Cutting Machine with Drilling Function
5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal
Stainless Steel Cutting Machine with Drilling Function
abrasive sand feeding system
Abrasive sand feeding system
No need electronic control, simple operation, reliable,
maintenance-free
Can supply the cutting sand quantity
Need less than 0.2Mpa compressed gas pressure. 220KG Sand can be
used for 8-10 hours.
CNC controller
CNC control, apply 21 inch LCD
Adopt specialized NCStudio water jet cutting software, have
autosave function for next operation.
Apply SIEMENS PLC instead of relay, buttons are Schneider
can provide ITALY Imported ECS software which support more than 15
languages
other potionals
60000 psi direct drive pump
oil chiller
laser height tracking system
drilling head
polishing head
AC 5 axis
water supply system
abrasive sand removal system
if use our 30kw 63000psi second-generation direct
drive pump , the cutting speed will be as follows: the
cutting speed will be twice higher than with 420mpa
intensifier pump.
MODEL :WMT SDD II 40
MAX PRESSURE :435MPa
Continuous working pressure :370-380MPa
Max orifice diameter :0.43mm
Flow rate :5.6 l/min
Inlet water pressure :0.4MPa
Motor power :30KW
Dimension :1800mm X 900mm X 1200mm
Booster and piping system (high-pressure cylinder, plunger rod,
high-pressure seal, low-pressure seal, high-pressure piping, check
valve, etc
Dual-row filtration system (5 Micron, 1 micron, in series)
Fully automatic servo control system, output pressure control mode
Intelligent start-stop function
Automatic shutdown for overpressure and automatic protection for
underpressure
Power supply:380VAC, 50Hz , 3 Phase
Packing&Shipping
soft packing in one 20'FCL container
After Sales Service
We have exported to more than 20 countries yet, and now have agent
in America, Russia,South
Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and
all European countries, Malaysia,Vietnam. Singapore.
we can arrange engineers go to customer's factory if no agents in
their country.
reback time: not more than 12 hours.

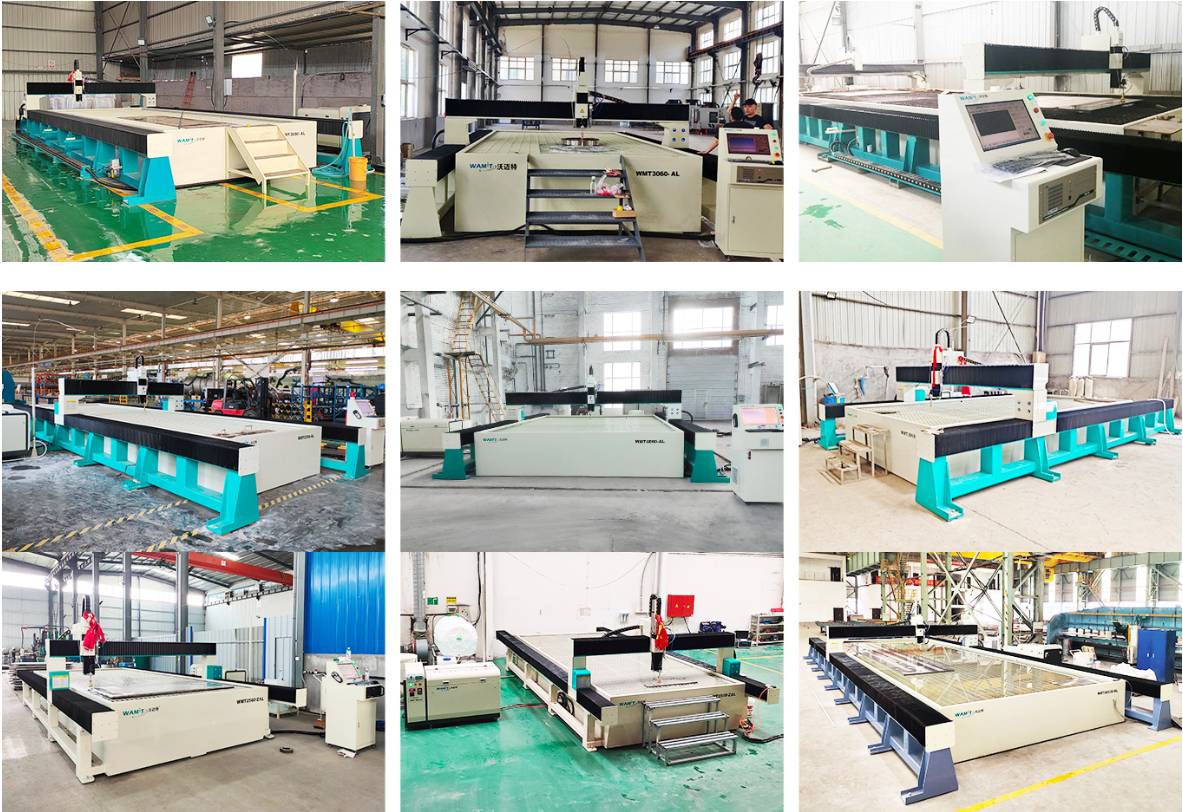

Some Projects Photos
Company Introduction
We are professional supplier of water jet cutting machine and spare
parts for all Chinese brand water jet cutting machine. Our factory
is located in JINAN city, SHANDONG province, China. we have 420Mpa
intensifier pump, 80KPSI and 90KPSI intensifier pump , 60KPSI
direct drive pump and 420mpa with dual intensifier pump, we also
can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with
60 degree cutting head water jet cutting machine, pure water
cutting and abrasive sand cutting. our machines are with excellent
quality efficient and accuracy, economical investment with low
initial cost and low maintenance cost to our customers. All the
machinery delivered by us come with first class after-sale service.
all machines are with one- year warranty of main parts, whole-life
after-service for the entire machine.We can supply water jet
cutting machine according to your requests,from the cutting table
size to the special design . Especially our new design of automatic
abrasive sand removing system bring convenience for glass and
marble factories. this system can fit for any brand water jet
cutting machine. you needn't stop the machine while it is
working.our new FLOW type cutting head can improve you 10% cutting
efficiency, and our new technology can make the machine moving
speed to 30-50m/min so that reduce you 15%-50% cutting cost
according to the materials.Until now We have expanded our market to
North America, Australia, Southeast Asia, Central Asia and the
Middle East. And establish a good relationship with our customers
in Russia, Argentina, America, Canada, UK, Chile, South Africa,
Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam,
Turkey,Mexico,Malaysia ,Australia and other countries and
regions.we now have after-service department in America, Russia,
South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi
Arabia,Malaysia.Vietnam.We takes "customer first, reliable quality,
honest and faithful, good team work" as our consistent business
principle. With the strict management and continuous improvement,
we can supply the best way of cutting by water jet. please don't
hesitate to contact us if you want to know more!
FAQ
1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city,
Shandong, China.
2. What kind of material does your water jet cutting machine can
cut?
There are plenty materials our water jet cutting machine can cut,
such as stone, ceramic, quartz, glass, foam, plastic, rubber,
copper, brass, aluminum, mild steel, pre-hardened steel, titanium,
inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting
thickness?
Generally speaking, if cut steel the max thickness of our water jet
cutting machine can be up to 240mm, but we suggest cut no more than
150mm for smooth cutting. Now our Z axis distance is 170mm, we can
customize for customers. Regular thickness please refer to: Marble
is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic
is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is
0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will provide
local service, if have no local service, we will arrange engineer
for overseas installation and training. The installation and
training time is generally 7-10 days. And we also can provide
installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 7-15 days.
