5 axis 4000 * 2000 mm Water jet Cutting Machine with 420 mpa intensifier pump water jet cutter

Our water jet cutter specification:

Advantages of water jet cutter:

1. Automatic lubrication system from the Valley of Japan.
2. The internal components are selected from Schneider International brand, with first-class quality and reliable work.
3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ). 4 servo driver, Y axis is with 700w driver, X axis is with 400w driver.
4. High precision, Ensure cutting results.
5. Provide customizable services.
6. No thermal deformation during cutting, avoiding physical and chemical changes of materials
7. It is widely adapted to the cutting process of various materials and has the reputation of "universal cutting machine"
8. The cut is smooth and flat without burrs, and generally does not need to be reprocessed;
9. Operated by the numerical control system, with high cutting precision;
10. The cutting seam is less than 1.2mm, which is convenient for nesting cutting and saving materials;
11. The processing process will not produce waste that pollutes the environment.
12. No thermal deformation, no burrs, and no secondary processing.
13. CNC waterjet is ideal or the only processing method for materials that are difficult to cut by other methods, such as aramid, titanium alloy and various composite materials.

There are many types of water jets, compare some of the ones mentioned earlier. Mainly from the situation of adding sand. Look at the difference between these types of water cutting knives. It will definitely help in the future.

1. Pure water jet

The sandless water jet simply uses the power of water to achieve the purpose of cutting. Of course, if the water flow is too large, this function is definitely not available. Only a very small water jet can cut different patterns, and the material loss during the cutting process is very small.
This kind of water jet is widely used. It can cut materials of different thicknesses and different materials quickly, with strong practicability. In fact, the key point of this water jet is its blade. During the entire cutting process, only a small gem can complete the task perfectly. When the high-pressure water passes through the jewel hole, the pressure is converted into velocity.

2. Add sand waterjet

The difference between sand-containing water jet and sand-free water jet is that the sand-free water jet etches the material through the water jet, while the sand-containing water jet accelerates the sand blasting by the water jet, and the accelerated sand blasting can cut the material. It can be seen that water plays a supporting role in the whole process. Due to the high energy, some hard materials must be cut with sand and water jets.It is really difficult to have a standard for which of the two waterjets is better. There are professions in the industry, and each has its own application field. We don't have to distinguish between these two types of waterjets.

• What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?

• What kind of material does your water jet cutting machine can cut?

There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy
3. What's your cnc water jet cutting machine's max.cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5.What's your delivery time?

Generally speaking is 30 days. if have stock, 15 days.

6.What is the cutting speed?

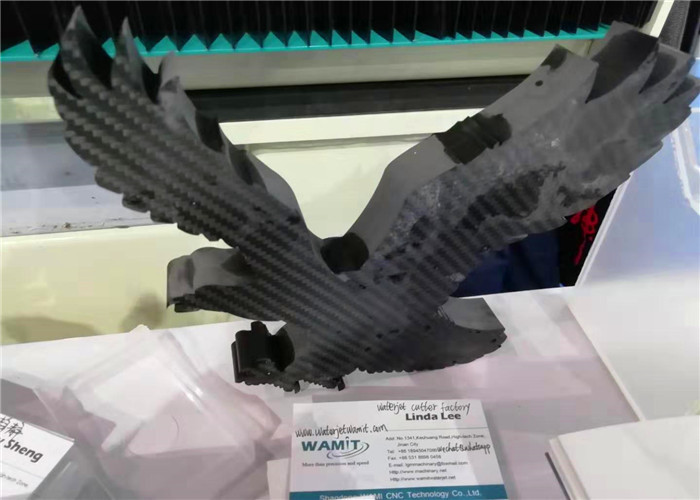

Water jet cutter cutting samples:



Company profile:

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. All machines are with one-year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to30-50m/min so that reduce you 15%-50% cutting cost according to the materials.Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary ,Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.

we have 420Mpa intensifier pump, 600Mpa intensifier pump ,60000psi direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.

We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.

our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.

Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.

We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more!
