2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter

    Buy cheap 2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter from wholesalers

    Buy cheap 2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter from wholesalers
    • Buy cheap 2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter from wholesalers

    2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter

    Ask Lasest Price
    Brand Name : WAMIT
    Model Number : WMT2515-AL
    Certification : CE,ISO
    Price : USD 41900-47800
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter

    2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter


    Water jet cutter features:


    1. A full set of abrasive waterjet cutting machine includes work table, pump,CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Abrasive removal system,etc.


    2. Equipment framework adopts supper heavy support system. The heavy-duty support of the equipment is rigid enough to ensure the stability under long-span and high-speed operation. With a multi-point fixing method in the length direction of the frame, there is no any deformation displacement during operation, which ensure the cutting accuracy.


    3. A full set of abrasive waterjet cutting machine includes work table, pump,CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Abrasive removal system,etc.


    4. Equipment framework adopts supper heavy support system. The heavy-duty support of the equipment is rigid enough to ensure the stability under long-span and high-speed operation. With a multi-point fixing method in the length direction of the frame, there is no any deformation displacement during operation, which ensure the cutting accuracy.


    Water jet cutting mashine Specifications:


    SPECIFICATIONS FOR WATER JET CUTTING MACHINE
    ModelWMT1010WMT1515WMT2515WMT3020WMT5030
    Cutting TableX Axis(mm)11001700270032005500
    Y Axis(mm)11001700170022003300

    Max.cutting range(mm)

    X Axis(mm)10001500250030005000
    Y Axis(mm)10001500150020003000
    Z Axis(mm)150150150150150
    Control accuracy±0.01mm
    Cutting accuracy±0.1mm
    Re-positioning accuracy±0.02mm
    Drive systemAC servo ( YASKAWA, Japan )
    Max. moving speed6000mm/min

    Cut materials:


    Alloy SteelSteel Hardened
    AluminumSteel Hard RolledPorcelain
    Armor PlateSteel MildPVC
    BrassSteel ToolRubber
    BoronTantalumThermoplastics
    BronzeTinTeflon
    Cast IronTitaniumUrethane
    CobaltTungstenVinyl
    CopperWrought IronArmor Plate
    Exotic AlloysZincBullet Proof Glass
    HastalloyAcrylicsGlass
    Hardened SteelCeramicsMIrror Glass
    Hot Rolled SteelCompositesCeramic Tile
    InconelFoamGranite
    KevlarFiberglassLimestone
    MagnesiumKevlarMarble
    Mild SteelMylar LaminatesPocelain
    Nickel Alloys StainlessNylonTerrazzo
    SteelPlasticHardwood
    Steel AlloyPlexiglass

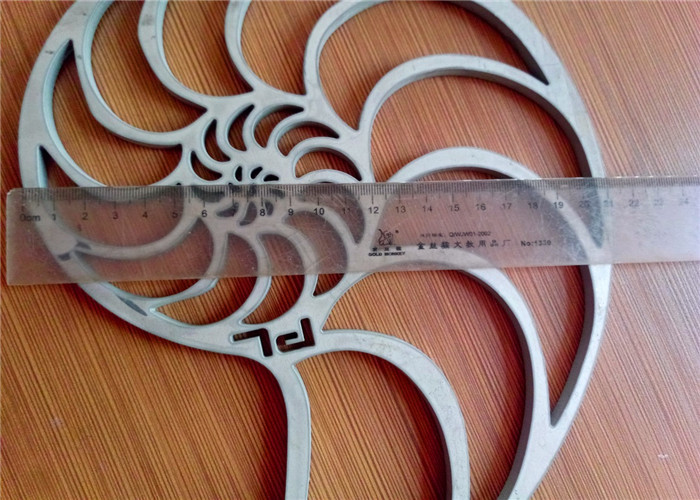

    Water jet cutter cutting samples:


    2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter2500 * 1500 mm Water Jet Marble Granite Ceramic Tile Cutting Machine water jet cutter


    FAQ:


    1. What are the benefits of purchasing a water jet cutting machine comparing EDM, Laser, Plasma or Machine tool?


    RequirementsWaterjetEDMLaserPlasmaMachine tools
    Cost and time efficientYesNoYesYesNo
    High tolerance, precise cuttingYesYesYesNoNo
    No burned edges, no HAZYesNoNoNoYes
    Multi-head cuttingYesNoYesNoYes
    Steel is over 150mm thicknessYesYesNoYesYes
    No distortion or discolorationYesYesNoNoYes
    Nesting yieldYesYesYesNoNo
    Shiny, mirror finishYesYesNoNoYes
    Brittle,soft or hard materialYesYesYesYesNo
    Stainless steel, copper, brass or exotic materialYesYesNoYesNo
    No toxic fumes, deposits, or carbon buildupYesNoNoNoNo
    Environmentally friendlyYesNoYesYesNo

    2. What kind of material does your water jet cutting machine can cut?


    There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and hastalloy


    3. What's your cnc water jet cutting machine's max.cutting thickness?


    Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut not more than 150MM for smooth cutting. now our Z axis distance is 170mm, we can do special for customers.


    4. How we supply after-service?


    Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.


    5. What's your delivery time?


    Generally speaking is 30 days. if have stock, 15 days.


    6. What is the cutting speed?


    MaterialThickness(mm)Cutting Speed of 420MPa pump(mm/min)
    Marble

    20

    30

    410

    360

    Granite

    20

    30

    380

    250

    Glass Bridck121100
    Glass

    5

    10

    20

    1610

    725

    420

    Glue Chipped Glass10630
    Sponge506500
    Foam506500
    Wood

    10

    50

    1350

    270

    Steel

    2

    4

    6

    8

    10

    15

    20

    60

    800

    570

    520

    360

    260

    150

    60

    26

    Laminates102000
    Aluminum5970
    Copper5460
    Glass Fibre
    Reinforced plastic
    21650

    Our company:


    Shandong WAMI CNC Technology Co., Ltd. is located in the High-tech Development Zone of Jinan City, Shandong Province. It is a high-tech enterprise specializing in the research and development, production, sales and technical services of CNC ultra-high pressure water jet technology application products.The main product of the company is "Ultra-high pressure CNC water cutting machine", which is the world's new cold cutting technology and advanced manufacturing equipment.It combines high-tech products in many fields such as organic-electric integration, ultra-high pressure water jet technology and numerical control automation, automatic detection and compensation, computer-aided design and manufacturing, and robot applications. It is a world-class high-tech product.The pressure range of the three-way pressure regulating valve is very large, and the use range of the three-way pressure regulating valve can be used normally from 80 to 400 MPa, and can even be used normally at higher pressures.
