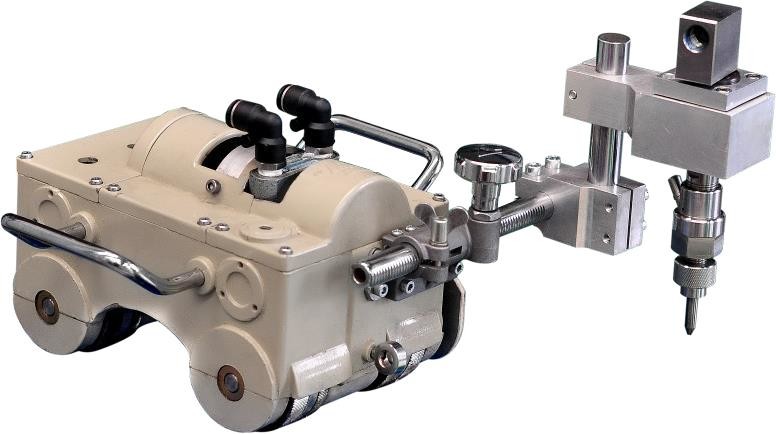

    Gas Pipe And Oil Tank 60000 Psi Portable Water Jet Cutter Machine Outside Use

    Ask Lasest Price
    Brand Name : WAMIT
    Price : 30000-40000 USD
    Payment Terms : T/T
    Supply Ability : 300 SETS/YEAR
    Delivery Time : 30 DAYS
    Model Number : WMT1505-AL
    Certification : CE,ISO
    • Product Details
    • Company Profile

    Gas Pipe And Oil Tank 60000 Psi Portable Water Jet Cutter Machine Outside Use

    60000psi direct drive pump features: Outside Use Gas Pipe And Oil Tank portable Water Jet Cutter

    60000psi direct drive pump advantsges:


    1. Can work 8 hours continuously.
    2. Only 12 degree/hour electricity cost.
    3. If cut 10MM thickness steel pipe, the speed can be 300 MM/MIN.
    60000psi direct drive pump features:
    Can also provide 9KW, 11KW small direct drive pump.
    Maximum pressure: 60000Psi.
    Gemstone aperture: 0.33mm.
    Displacement: 3.0 l/min.
    Inlet pressure: 0.4MPa.
    Main motor power: 15KW.
    Dimensions: 1680*900*1100mm
    Double row water filtration system (5Micron, 1micron, series)
    Intelligent start and stop function.
    Over-pressure automatic shutdown and under-pressure automatic protection.

    Portable water jet cutter Cut materials:


    Alloy SteelSteel Hardened
    AluminumSteel Hard RolledPorcelain
    Armor PlateSteel MildPVC
    BrassSteel ToolRubber
    BoronTantalumThermoplastics
    BronzeTinTeflon
    Cast IronTitaniumUrethane
    CobaltTungstenVinyl
    CopperWrought IronArmor Plate
    Exotic AlloysZincBullet Proof Glass
    HastalloyAcrylicsGlass
    Hardened SteelCeramicsMIrror Glass
    Hot Rolled SteelCompositesCeramic Tile
    InconelFoamGranite
    KevlarFiberglassLimestone
    MagnesiumKevlarMarble
    Mild SteelMylar LaminatesPocelain
    Nickel Alloys StainlessNylonTerrazzo
    SteelPlasticHardwood
    Steel AlloyPlexiglass

    Company profile:


    SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. All machines are with one-year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to30-50m/min so that reduce you 15%-50% cutting cost according to the materials. Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary ,Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.


    Portable water jet cutter Cutting Speed:
    Material
    Specification
    Speed(mm/min)
    Servo direct drive pump
    Hydraulic intensifier pump
    Carbon steel plate
    10mm
    330
    270
    12mm
    280
    220
    14mm
    240
    180
    16mm
    200
    140
    20mm
    170
    110
    22mm
    140
    85
    Aluminum plate
    12mm
    800
    600
    30mm
    200
    160
    Glass
    5mm
    2000
    1600
    8mm
    1800
    1400
    10mm
    1500
    1100
    12mm
    1200
    900
    14mm
    1000
    700
    Ceramic tile
    12mm
    2000
    1500
    14mm
    1400
    900
    Microcrystal stone
    16mm
    1200
    900
    Marble
    25mm
    1000
    800
    30mm
    800
    600
    Gas Pipe And Oil Tank 60000 Psi Portable Water Jet Cutter Machine Outside UseGas Pipe And Oil Tank 60000 Psi Portable Water Jet Cutter Machine Outside UseGas Pipe And Oil Tank 60000 Psi Portable Water Jet Cutter Machine Outside Use
