1. Gantry type balanced design work table, solid and stable, higher
strength
2. Work table of CNC motion mechanism and workpiece supporting
adopts a split structure, which eliminates the influence of water
gushing on cutting precision during cutting
3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion,
TBI rail, which ensure the accuracy of bearing parts, stable
conveying, hard-wearing quality. During cutting, it causes
splashing sand and water. Fully enclosed lifting structure design
in Z-axis prevents corrosion of lead screws and guides.
4. Lntegrated automatic lubrication system make the maintenance
more automatic and easier.
5. All electric components are Schneider brand
6. Equipped with YASKAWA AC servo drive power and motor ( Japan
brand), high accuracy, long service life.
The water jet uses ultra-high pressure technology to pressurize
ordinary tap water to a pressure of 250-400Mpa, and then spray it
through a jewel nozzle with an inner hole diameter of about
0.15-0.35mm to form a high-speed jet with a speed of about
800-1000m/s, commonly known as its It is a water arrow, which has
high energy and can be used to cut soft base materials. If the
right amount of abrasive is added to the water jet, it can be used
to cut almost all soft and hard materials. Adjusting the pressure
and flow rate of the water jet can be used to clean various
objects, such as removing glue, paint, and rust. We can also use
ultra-high pressure technology for autoclaving, food preservation,
and many other jobs that are beneficial to humans.
Cutting material of our water jet cutter:
The ultra-high pressure waterjet can cut all kinds of thick and
hard materials: such as stainless steel, aluminum, copper, steel,
marble, alloy metal, glass, plastic, ceramics, tiles and various
visible materials.
Cutting accuracy of our water jet cutter:
The accuracy of cutting workpieces is between 0.1mm and 0.25mm. The
accuracy of the workpiece is determined by the accuracy of the
machine, the size and thickness of the workpiece to be cut.
Kerf width of our water jet cutter:
It depends on the size of the cutting material and the nozzle used.
Generally speaking, the incision of sand cutting is about 1.0mm to
1.2mm. As the diameter of the sand knife tube expands, the incision
becomes larger.
Cutting bevel of our water jet cutter:
The cutting speed of the operation determines the quality of the
bevel. Most of the single-sided bevels with good cutting quality
are about 0.1mm.
Cutting speed of our water jet cutter:
| Material | Specification | Speed(mm/min) |
| Servo direct drive pump | Hydraulic intensifier pump |
| Carbon steel plate | 10mm | 330 | 270 |
| 12mm | 280 | 220 |
| 14mm | 240 | 180 |
| 16mm | 200 | 140 |
| 20mm | 170 | 110 |
| 22mm | 140 | 85 |
| Aluminum plate | 12mm | 800 | 600 |
| 30mm | 200 | 160 |
| Glass | 5mm | 2000 | 1600 |
| 8mm | 1800 | 1400 |
| 10mm | 1500 | 1100 |
| 12mm | 1200 | 900 |
| 14mm | 1000 | 700 |
| Ceramic tile | 12mm | 2000 | 1500 |
| 14mm | 1400 | 900 |
| Microcrystal stone | 16mm | 1200 | 900 |
| Marble | 25mm | 1000 | 800 |
| 30mm | 800 | 600 |

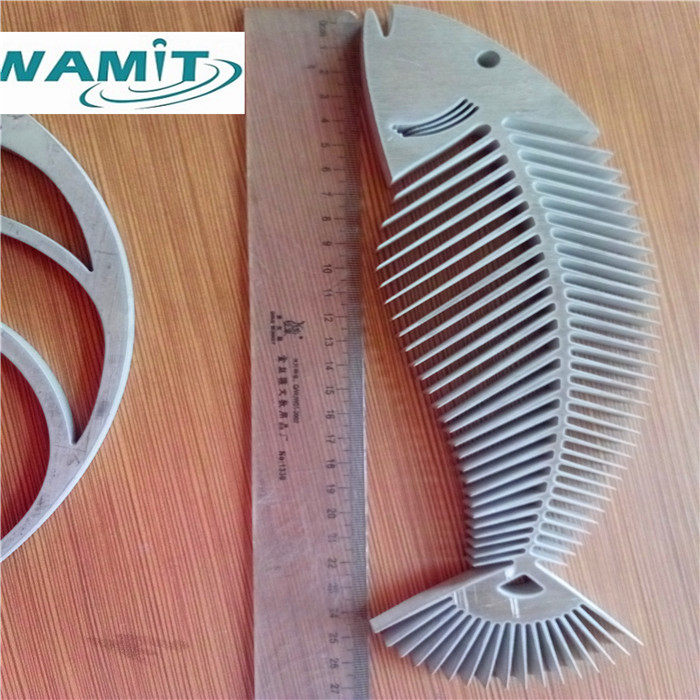

Cutting samples of our water jet cutter:
After-sales Service:
1. Field maintenance and repair service,
2. Online support, Field installation, commissioning and training,
Video technical support
3. Free spare parts.
