1500 * 2500 mm Water Cutter Laminated Glass Mosaic Water jet Cutting Machine water jet cutter

Our water jet cutter specification:

The working principle of our water jet cutter:

The basic working principle of ultra-high pressure waterjet is simple and extremely complicated. The key to the formation of ultra-high-pressure water is the high-pressure pump. The low pressure oil from the oil pump pushes the large piston of the supercharger to make it reciprocate. The moving direction of the big piston is automatically controlled by the reversing valve. On the other hand, the water supply system is purified first, and then the low-pressure water is pumped out by the water pump. After the low-pressure water entering the booster is pressurized by the small piston, the pressure rises. Because the high-pressure water is produced after the supercharger is continuously compressed back and forth, and the piston of the supercharger needs to be reversed, the pressure of the water jet emitted from the nozzle is pulsating. (Water cutting processing) In order to obtain a stable high-pressure water jet, it is necessary to make the generated high-pressure water enter an accumulator, and then flow to the nozzle, so as to achieve the purpose of stabilizing the pressure. The basic working principle of waterjet is simple and extremely complicated by ordinary water ultra-high pressure waterjet. The key to the formation of ultra-high-pressure water is the high-pressure pump.

The low pressure oil from the oil pump pushes the large piston of the supercharger to make it reciprocate. The moving direction of the big piston is automatically controlled by the reversing valve. On the other hand, the water supply system is purified first, and then the low-pressure water is pumped out by the water pump. After the low-pressure water entering the booster is pressurized by the small piston, the pressure rises. Because the high-pressure water is produced after the supercharger is continuously compressed back and forth, and the piston of the supercharger needs to be reversed, the pressure of the water jet emitted from the nozzle is pulsating. (Water cutting processing) In order to obtain a stable high-pressure water jet, it is necessary to make the generated high-pressure water enter an accumulator, and then flow to the nozzle, so as to achieve the purpose of stabilizing the pressure. The water jet is made by ordinary water passing through an ultra-high pressure pressurizer to pressurize the water to 4,000 bar (60,000 psi), and then passing through a very small nozzle (with a diameter of about 0.1mm to 0.4mm) to produce a speed per second A water arrow that is nearly a kilometer (about three times the speed of sound). This water arrow is like a sharp sword for cutting, cutting the workpiece that needs to be processed.

The composition of waterjet processing equipment includes:

Ultra-high pressure pump, waterjet cutting head device, waterjet X-Y movable plane cutting table, CNC controller and CAD/CAM software package, etc. The key equipment is: the ultra-high pressure pump increases the water pressure to be able to cut a variety of materials, the higher the pressure, the more it can penetrate a variety of different materials; the waterjet cutting head device contains a small diameter gem nozzle, usually Red or sapphire, this kind of jewel nozzle is inlaid in the metal material, and the nozzle is installed on a shelf that can be adjusted up and down, so that the high-pressure water arrow can accurately pass the position to be processed without damaging any other parts of the workpiece. This is also an important factor to ensure the accuracy of waterjet cutting. After an ultra-high pressure pressurizer, the water is pressurized to 4,000 bar (60,000 psi), and then passed through a very small nozzle (with a diameter of about 0.1mm to 0.4mm), generating a velocity of nearly kilometers per second (about the speed of sound) Three times the water arrow. This water arrow is like a sharp sword for cutting, cutting the workpiece that needs to be processed.

The composition of waterjet processing equipment includes: ultra-high pressure pump, waterjet cutting head device, waterjet X-Y movable plane cutting table, CNC controller and CAD/CAM software package, etc. The key equipment is: the ultra-high pressure pump increases the water pressure to be able to cut a variety of materials, the higher the pressure, the more it can penetrate a variety of different materials; the waterjet cutting head device contains a small diameter gem nozzle, usually Red or sapphire, this kind of jewel nozzle is inlaid in the metal material, and the nozzle is installed on a shelf that can be adjusted up and down, so that the high-pressure water arrow can accurately pass the position to be processed without damaging any other parts of the workpiece. This is also an important factor to ensure the accuracy of waterjet cutting.

Cutting speed of the water jet cutter :

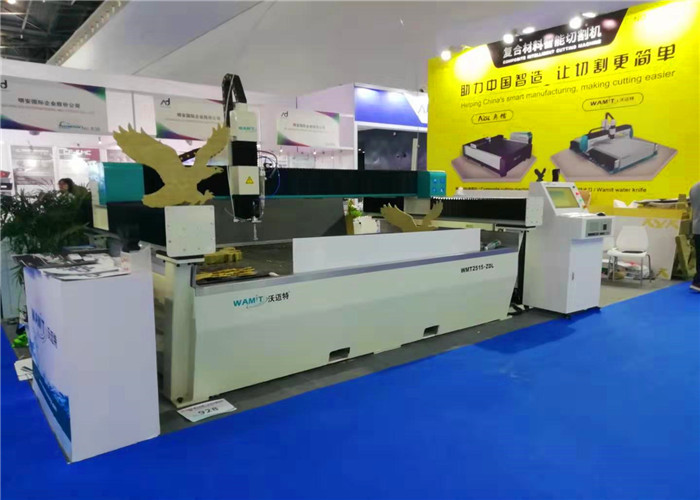

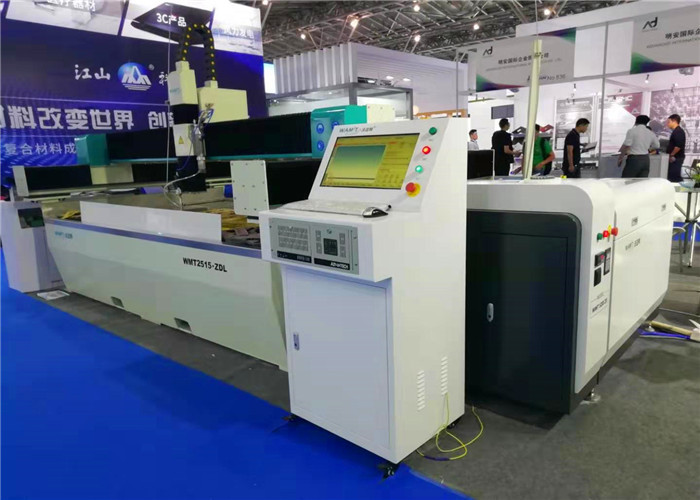

Our exhibition of water jet cutter:

After-sales Service:

1. Field maintenance and repair service,

2. Online support, Field installation, commissioning and training, Video technical support

3. Free spare parts.

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.

we have 420Mpa intensifier pump, 600Mpa intensifier pump ,60000psi direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.

We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.

our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.

Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.

We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more!
