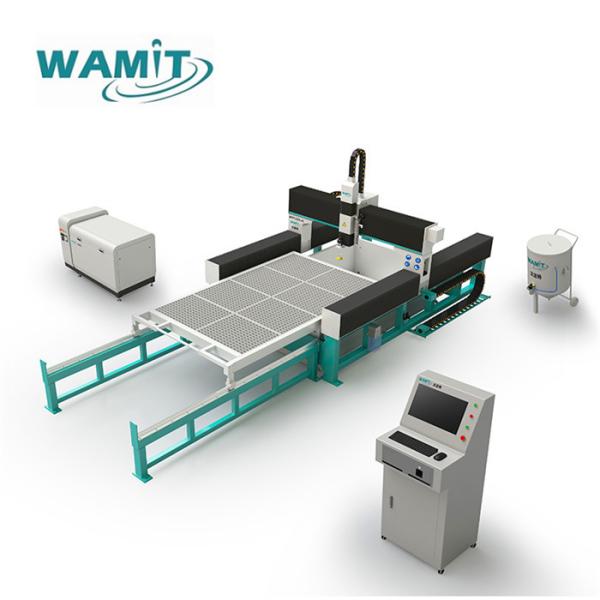

Low cost 3 Axis 2500 * 1500 mm Water jet Cutting Machines with 60000 psi direct drive pump water jet cutter

Our water jet cutter specification:

Main Features of our water jet cutter:

1. HIWIN linear guider and ball screw
2.Variable servo pump can reduce the electricity cost
3.We have agents in India, America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam, and so on.
4.We can make machine moving speed to 10-50m/min which will improve your cutting efficiency

Gantry type balanced design work table, solid and stable, higher strength
6. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
7. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
8. Lntegrated automatic lubrication system make the maintenance more automatic and easier.
9. All electric components are Schneider brand
10. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life.

Water jet cutter cutting technology:

Due to the effect of energy gradient, the deeper the cutting surface (the farther from the nozzle), the worse the cutting ability of cutting methods such as laser, gas plasma, and jet, so the formed cutting surface is often not perpendicular to the surface of the workpiece, which is called cutting Slope, which is an inherent defect of all cutting methods. Although the cutting slope can be partially reduced by increasing the cutting energy or reducing the cutting speed, there is still the problem of not being able to cut completely vertically. Therefore, the idea of a tiltable cutting head was proposed in 1997, and there are commercial products in the world. This is the most direct and effective way to solve the cutting slope and improve the accuracy. The principle is that by adding 2 more rotating axes on the basis of the original three-axis platform, the cutter head can swing in any direction, and using the pre-set slope model in the system, through real-time calculation of the cutting trajectory, and then according to the cut The material and thickness of the workpiece are corrected, and the cutting head is constantly swayed during the cutting process, so that the cut workpiece reaches a perfect state of no slope.

Water jet cutter cutting materials:

Cutting accuracy of our water jet cutter :

The accuracy of cutting workpieces is between 0.1mm and 0.25mm. The accuracy of the workpiece is determined by the accuracy of the machine, the size and thickness of the workpiece to be cut.

Kerf width of our water jet cutter :

It depends on the size of the cutting material and the nozzle used. Generally speaking, the incision of sand cutting is about 1.0mm to 1.2mm. As the diameter of the sand knife tube expands, the incision becomes larger.

Cutting bevel of our water jet cutter:

The cutting speed of the operation determines the quality of the bevel. Most of the single-sided bevels with good cutting quality are about 0.1mm.

Cutting samples of our water jet cutter:

Company profile:

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. All machines are with one-year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to30-50m/min so that reduce you 15%-50% cutting cost according to the materials.Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary ,Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

SHANDONG WAMI CNC TECHNOLOGY CO.LTD is the professional manufacturer of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine . our factory is located in JINAN city, SHANDONG province, China.

we have 420Mpa intensifier pump, 600Mpa intensifier pump ,60000psi direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality - efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.

We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.

our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.

Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.

we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.

We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more!
